AIRTEC MOTORSPORT FRONT MOUNT INTERCOOLER FOR KIA CEED GT

2 items left

As part of our expanding Kia platform product range, AIRTEC Motorsport is proud to launch our intercooler kit for the Kia Ceed GT, suitable for track or fast road use.

AIRTEC Part No: ATINTKIA2


TECHNICAL DATA


As part of our expanding Kia platform product range, AIRTEC Motorsport is proud to launch our intercooler kit for the Kia Ceed GT, suitable for track or fast road use.

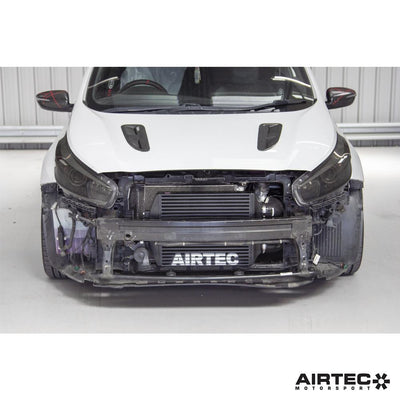

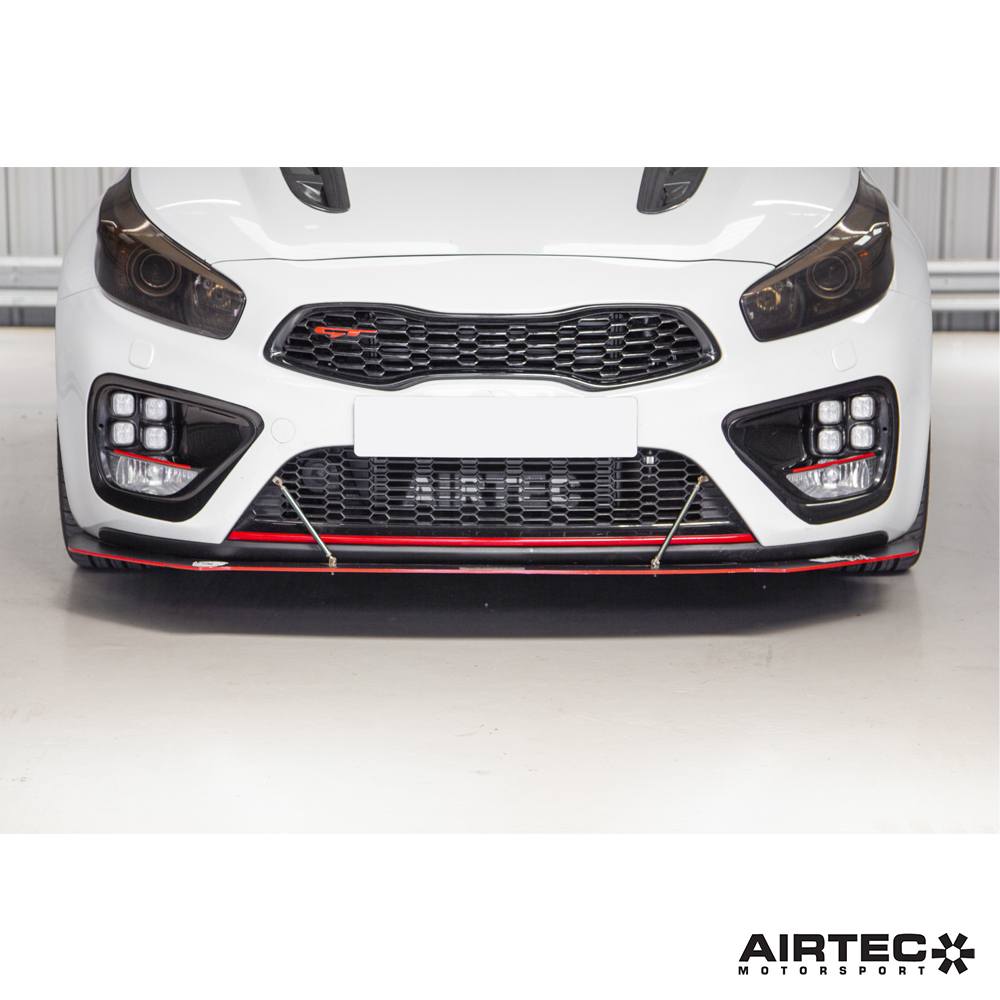

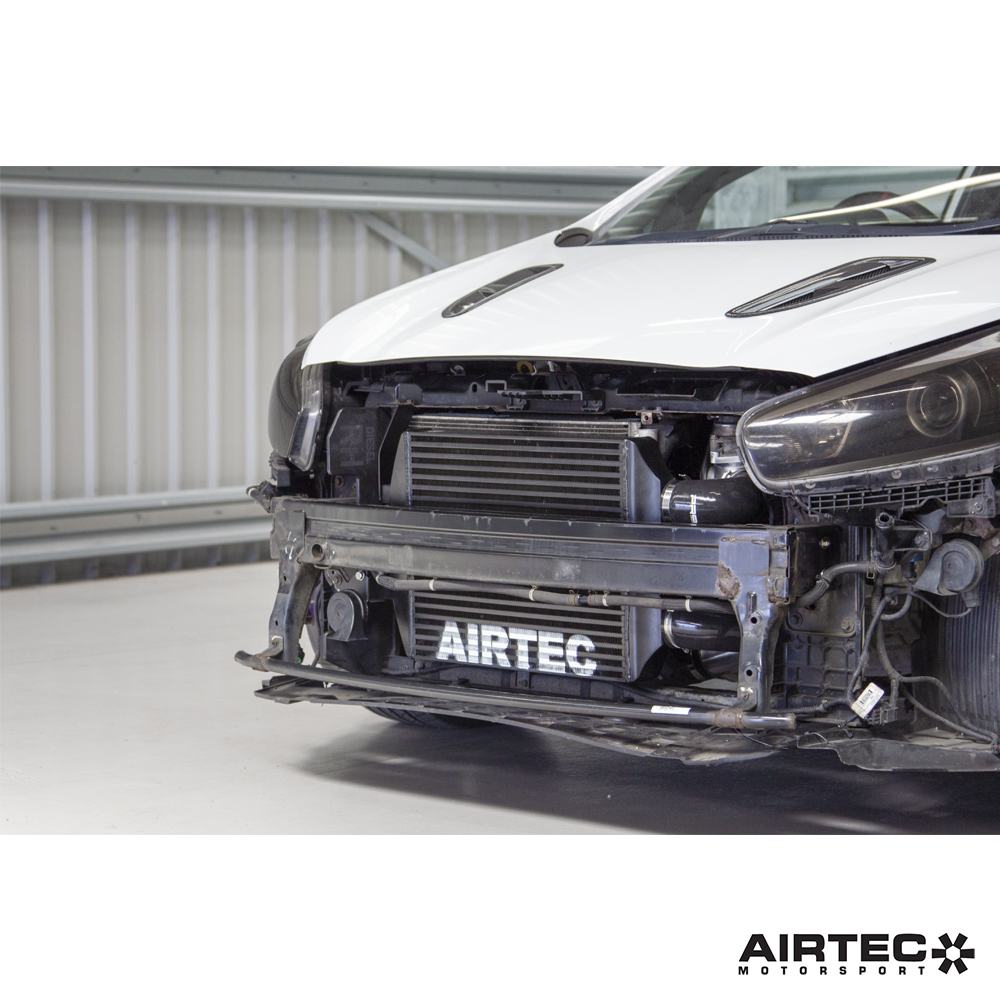

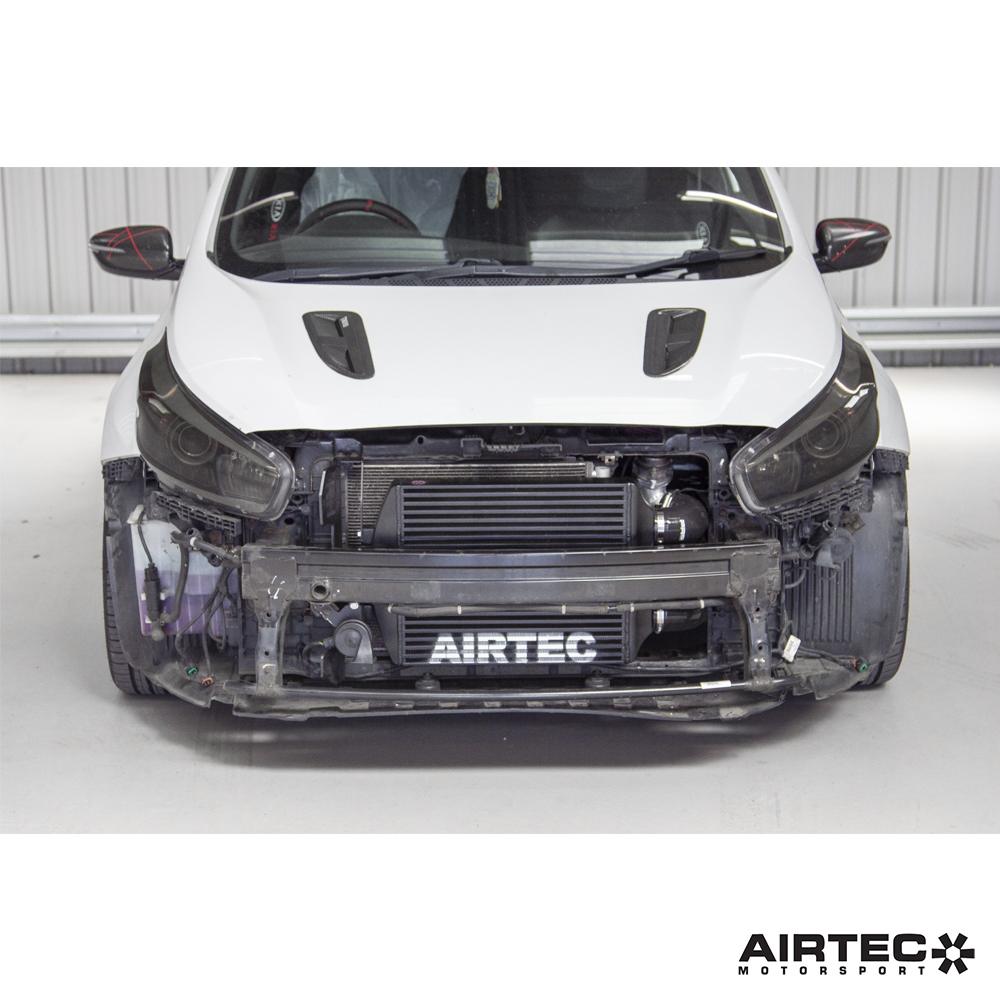

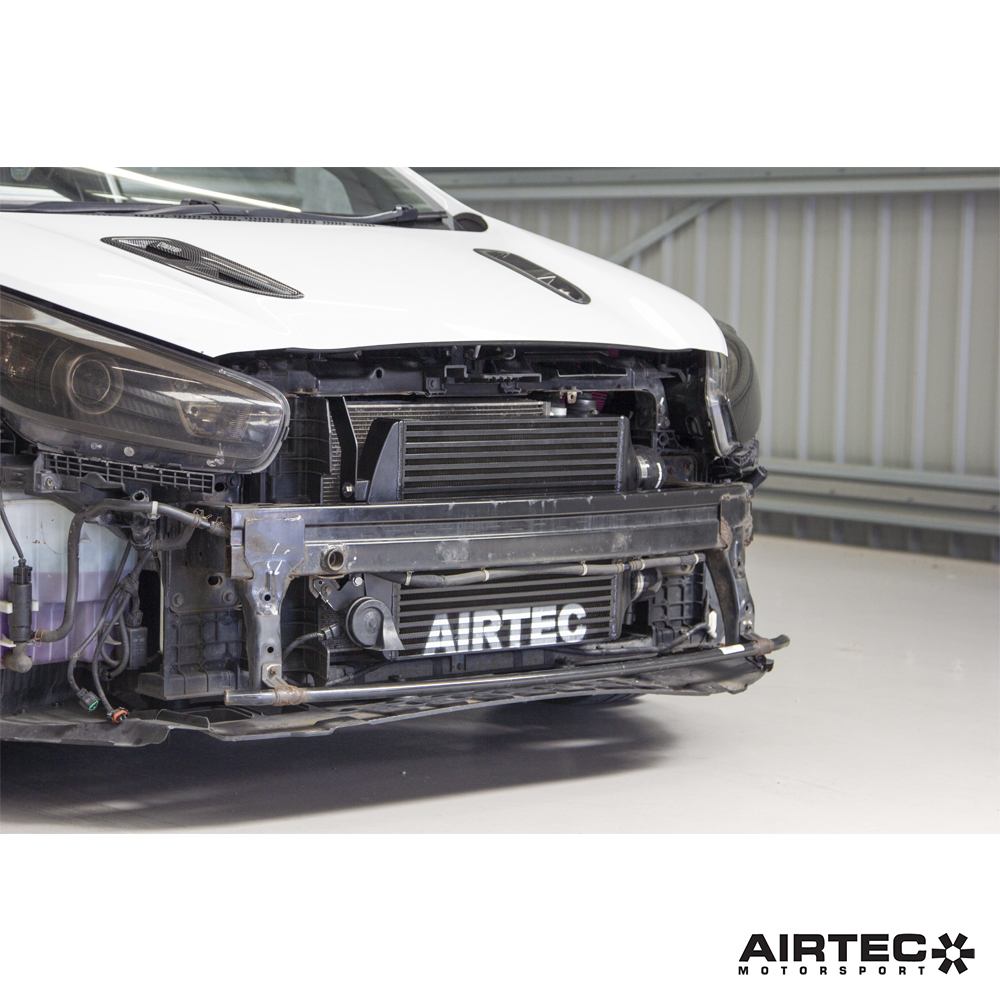

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing front mount intercooler that replaces the smaller and more restrictive side mount set up.

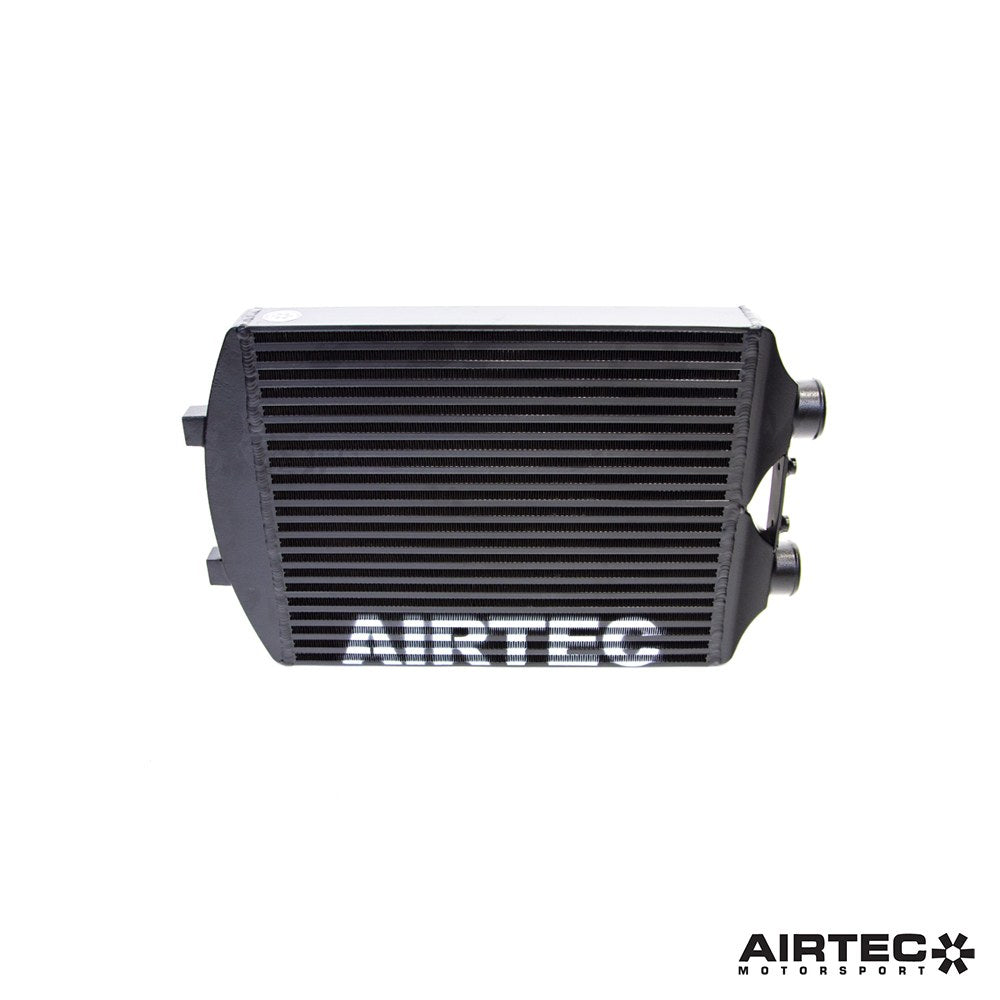

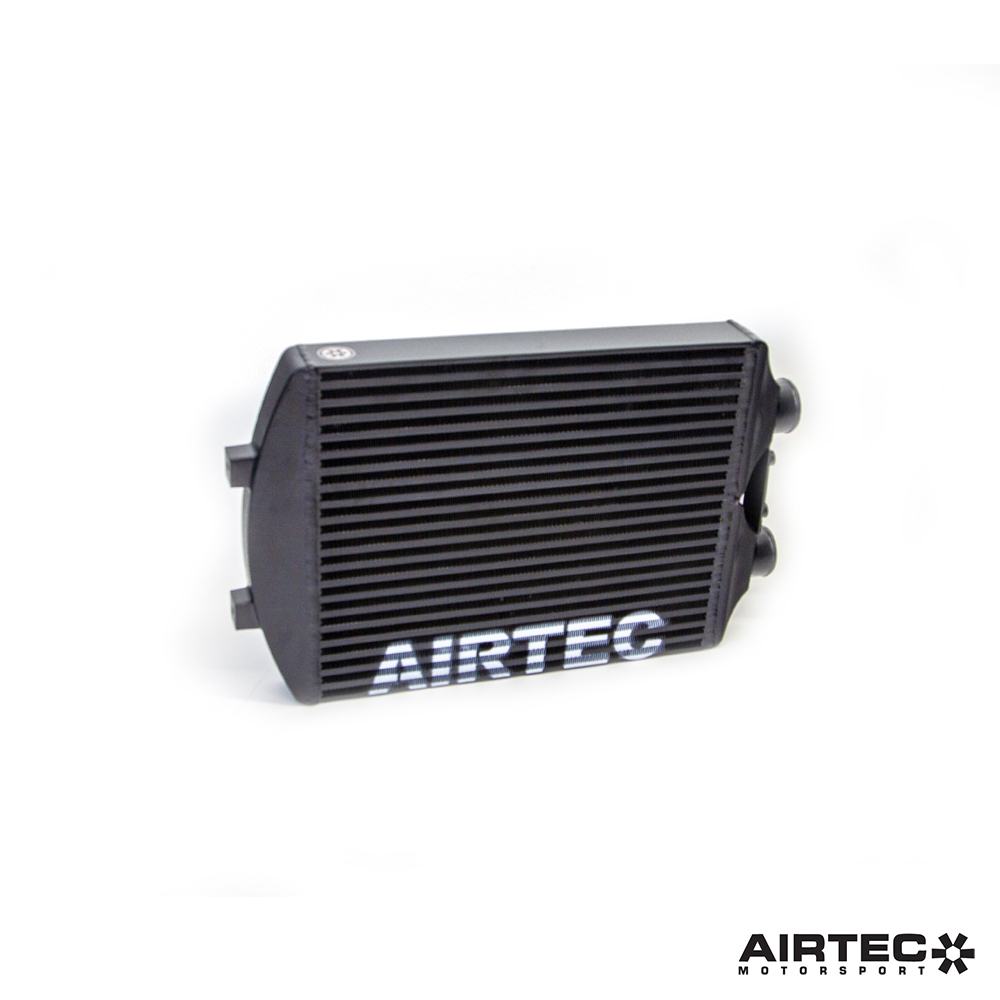

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a much larger twin-pass core. This offers a huge 125% increase in overall capacity in comparison to the original intercooler, as well as colossal 239% increase in frontal area over standard, which allows it to make the most of the air flow provided. The twin-pass core design forces the boost up and down the core twice before it exits, increasing the time it passes through the intercooler to further decrease temperatures.

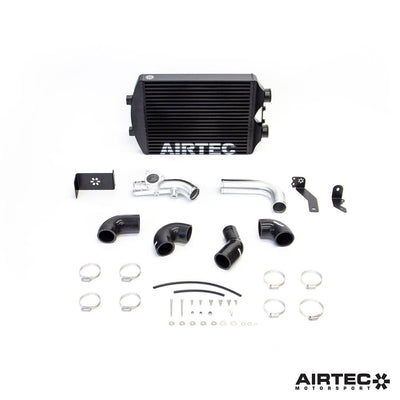

The comprehensive kit also includes a big boost pipe kit that relocates the original re-circ valve and all silicone hose connectors, together with fixtures, fittings and instructions.

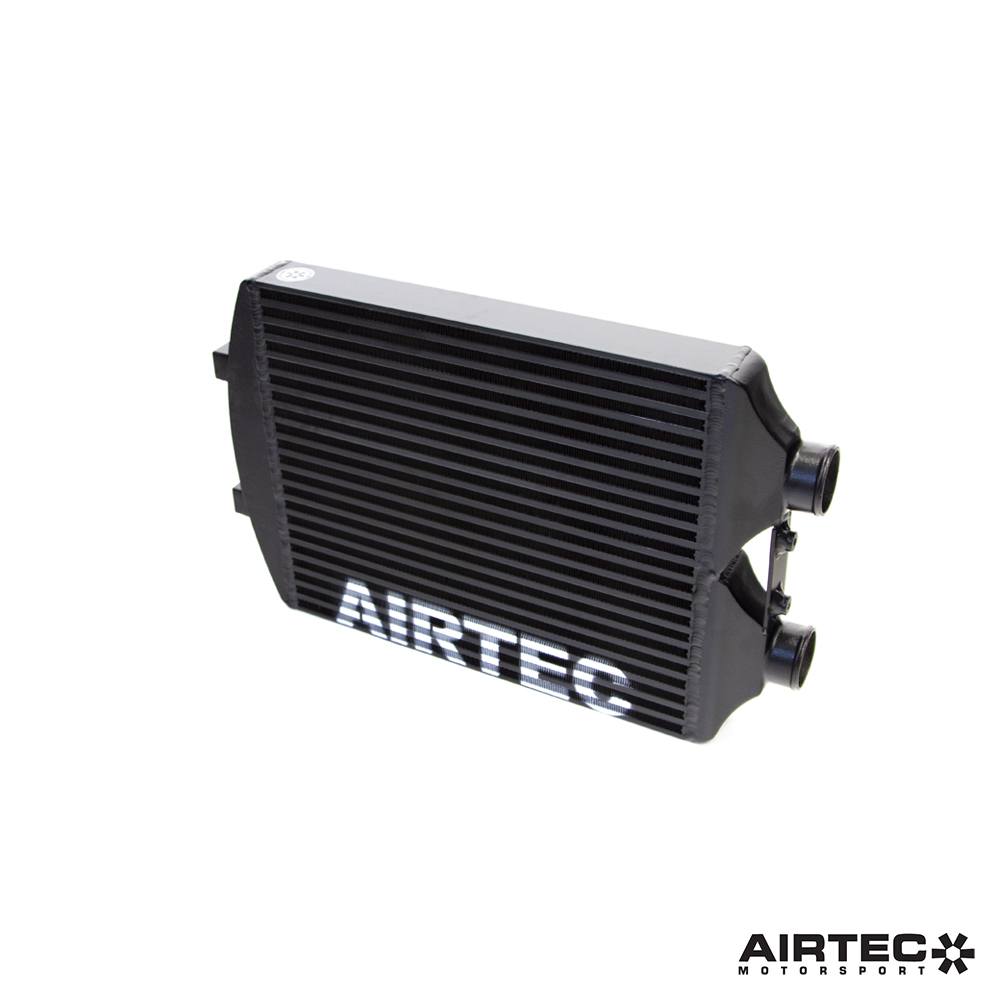

Together with our high-flow, moulded end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Dimensions
Original intercooler

Width: 290mm

Height: 178mm

Depth: 90mm

Capacity: 4.65litres

Front area: 516cm²

Outlets: 45mm

AIRTEC Motorsport intercooler
Width: 460mm

Height: 380mm

Depth: 60mm

Capacity: 10.48litres

Front area: 1,748cm²

Outlets: 60mm

See our matching hot side bog boost pipe kit for this intercooler kit: AIRTEC Motorsport Big Boost Pipe Kit for Kia Ceed GT

Features:

  • Specifically designed for the Kia Ceed GT model
  • 125% increase in overall capacity in comparison to original
  • 239% increase in frontal area over standard
  • Huge increase in cooling ability
  • Reduced charge temperatures
  • Twin-pass core design
  • Big boost pipe kit included
  • High-flow, moulded one-piece cast end tanks
  • Powder coated black finish
  • Includes fittings and fixtures
  • Detailed fitting guide included

PLEASE NOTE: Information suggests these cars can be prone to overheating/head gasket failure. It is their responsibility of the customer to thoroughly ensure and check first hand that both their engine and cooling system are in good running health before fitting this intercooler kit.



AIRTEC Part No: ATINTKIA2
